Atomoxetine

Create a 3D molecular structure model of Atomoxetine from Genuine Molymod Components by Indigo

Atomoxetine's chemical structure shows it is an aromatic ether by the presence of its constituent functional groups. An amine group is present at one end of the carbon chain with a methyl substitution whichs makes this also a secondary amino compound. Lastly it is also can be classified as a toluene

Atomoxetine is a selective norepinephrine reuptake inhibitors (SNRIs) drug used to treat attention deficit hyperactivity disorder (ADHD). Increasing the levels of norepinephrine, a neurotransmitter, can improve attention and reduce impulsivity and hyperactivity. Unlike Ritalin & other  medications used for ADHD, atomoxetine is not a stimulant.

A molecular model of Atomoxetine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
255.359 C17H21NO

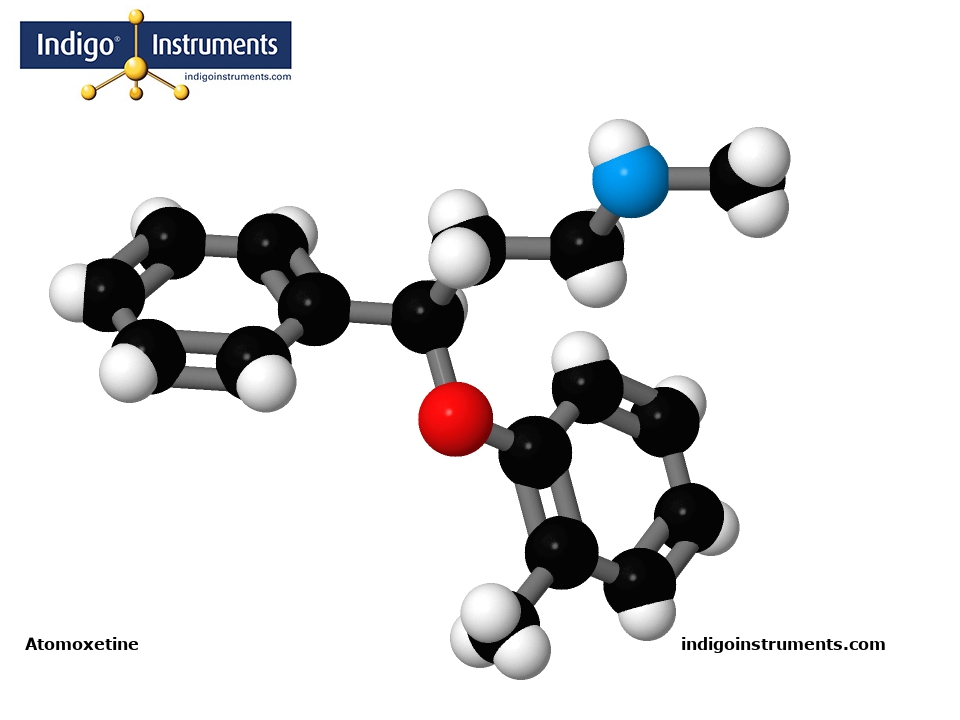

Atomoxetine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm21
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees1
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm17
61012EBond, Molymod, grey (single), 20mm14
61013EBond, Molymod, grey (double/triple), 35mm12
61015EBond, Molymod, opaque, 2mm (for spacefilling models)21
Synonyms
IUPAC Name: (3R)-N-methyl-3-(2-methylphenoxy)-3-phenylpropan-1-amine , InChI=1S/C17H21NO/c1-14-8-6-7-11-16(14)19-17(12-13-18-2)15-9-4-3-5-10-15/h3-11,17-18H,12-13H2,1-2H3/t17-/m1/s1 , InChIKey: VHGCDTVCOLNTBX-QGZVFWFLSA-N , SMILES: CC1=CC=CC=C1OC(CCNC)C2=CC=CC=C2 , CAS: 83015-26-3 , (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine , methyl-[(3R)-3-(2-methylphenoxy)-3-phenyl-propyl]amine ,
