Oxytocin (Pitocin)

Construct a 3D molecule model of the hormone Oxytocin (Pitocin) from Genuine Molymod Model Parts by Indigo.

Oxytocin is cyclic protein consisting of nine amino acids in the sequence Cysteine-Tyrosine-Isoleucine-Glutamine-Asparagine-Cysteine-Proline-Leucine-Glycine-NH2 (CYIQNCPLG-NH2). The disulfide bond between two cysteine residues give its stable ring-like structure. As a small hydrophilic peptide, it readily circulates in the bloodstream where it plays a role in areas relating to reproduction including lactation & maternal bonding.

An important metabolic effect involves energy balance by affecting food and energy expenditure which helps regulate body weight. Oxytocin inhibits the hypothalamic-pituitary-adrenal (HPA) axis which reduces stress and anxiety. At the cardiovascular level it improves vasodilation and protects against inflammation.

A molecular model of Oxytocin in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
1007.1876 C43H66N12O12S2

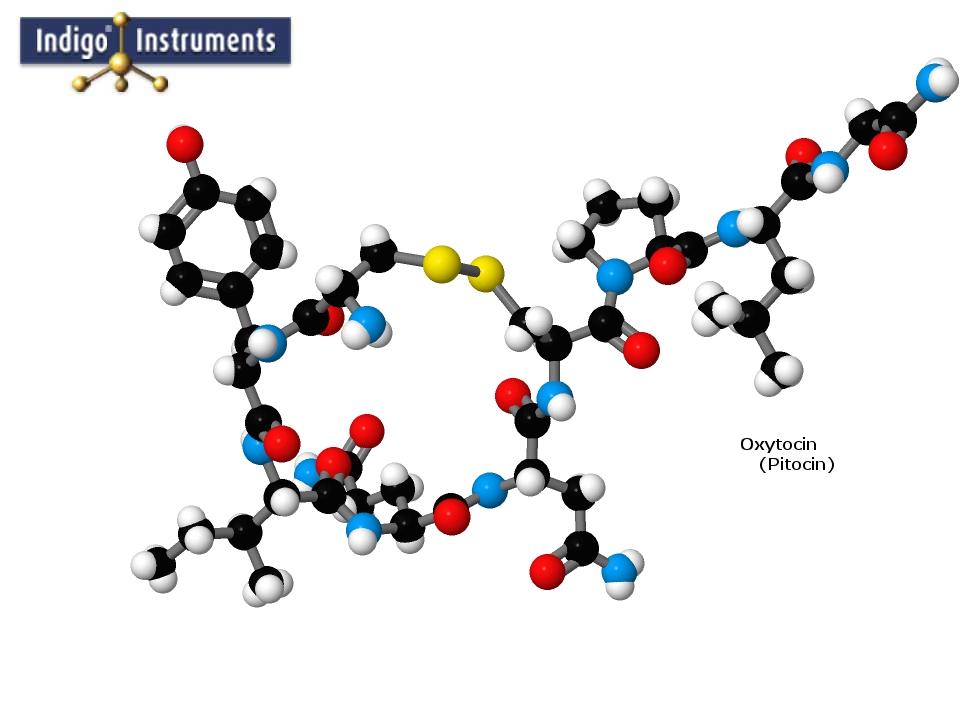

Oxytocin (Pitocin) molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm66
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees12
60201EAtom, Molymod, yellow (sulfur), 2 hole, 105 degrees, 23mm2
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm1
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm11
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm43
61012EBond, Molymod, grey (single), 20mm57
61013EBond, Molymod, grey (double/triple), 35mm28
61015EBond, Molymod, opaque, 2mm (for spacefilling models)66
Synonyms
IUPAC Name: (2S)-1-[(4R,7S,10S,13S,16S,19R)-19-amino-7-(2-amino-2-oxoethyl)-10-(3-amino-3-oxopropyl)-13-[(2S)-butan-2-yl]-16-[(4-hydroxyphenyl)methyl]-6,9,12,15,18-pentaoxo-1,2-dithia-5,8,11,14,17-pentazacycloicosane-4-carbonyl]-N-[(2S)-1-[(2-amino-2-oxoethyl)amino]-4-methyl-1-oxopentan-2-yl]pyrrolidine-2-carboxamide , InChI=1S/C43H66N12O12S2/c1-5-22(4)35-42(66)49-26(12-13-32(45)57)38(62)51-29(17-33(46)58)39(63)53-30(20-69-68-19-25(44)36(60)50-28(40(64)54-35)16-23-8-10-24(56)11-9-23)43(67)55-14-6-7-31(55)41(65)52-27(15-21(2)3)37(61)48-18-34(47)59/h8-11,21-22,25-31,35,56H,5-7,12-20,44H2,1-InChIKey: XNOPRXBHLZRZKH-DSZYJQQASA-N , SMILES: CC[C@H](C)[C@H]1C(=O)N[C@H](C(=O)N[C@H](C(=O)N[C@@H](CSSC[C@@H](C(=O)N[C@H](C(=O)N1)CC2=CC=C(C=C2)O)N)C(=O)N3CCC[C@H]3C(=O)N[C@@H](CC(C)C)C(=O)NCC(=O)N)CC(=O)N)CCC(=O)N , CAS: 50-56-6 , ,
