Halbach Magnet Generator

SKU: 44259-5

$4.10USD or lower Each

Save More When You Buy More!
Quantity1+10+ 100+ 1000+
Price for each$4.10USD$3.65USD$2.95USD$2.25USD
Your savings - 10.98%28.05%45.12%
Qty:

You can used this strong neodymium 25x10x5mm block magnet in a Halbach Generator. See below for more information. If you are prototyping a similar device, you can view all our 5mm thick blocks

A Halbach array uses the placement of permanent (usually neodymium) magnets to customize the shape of a magnetic field. It does so by strengthening it on one side while weakening it on the other. The simplest analogy would be to alternate the position of horseshoe magnets so that similar poles touch.

We have sold NdFeB magnets since 1996 and N42 grade since 2003, the best value for strength & temperature vs cost. Don't be fooled by claims of higher strength, N52, at lower cost.

Read the complete Google Customer Review for: "...(Indigo) N42 Neodymium magnets...the real deal…bought magnets on Amazon advertised as N52… another cheap Chinese fake"

We also provide complete Documentation including MSDS & ROHS; see below.
Details Specs Docs Reviews
Details

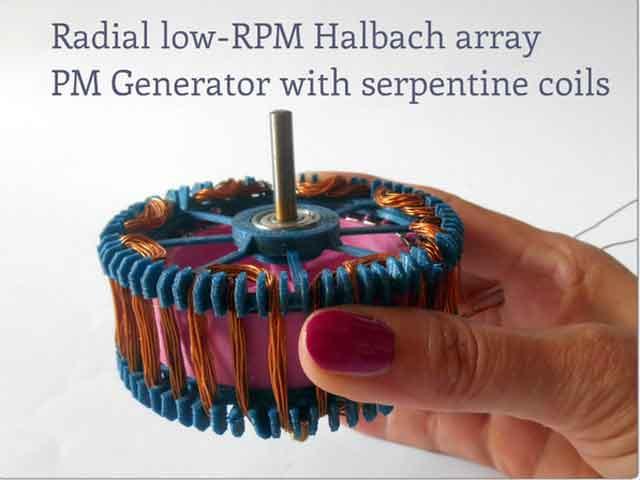

Go to Thingaverse for more information on how to 3D print this generator. The page indicates it was made with a 15x5x5mm magnet which we don't have as well as this the 25x10.2.5. However, the designers at Akinora smaller ones such as the 12.5x5x5mm will also work but are out of stock.

Related information or images
25x10x5mm NdFeB Block Magnet

25x10x5mm NdFeB Block Magnet
Specifications

Magnet Characteristics

Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet
SKU: 44259-5      Size:  25 x 10 x 5mm
Distance (mm): 0 0.1 1 10 100
Gauss 3590.7 3546.4 3121.2 642.4 2.4
Lb 14.90 14.53 11.26 0.48 0.00
Kg 6.77 6.61 5.12 0.22 0.00



Click on N42 Magnet Specifications for a table that lists general characteristics such as coercivity & remanence.

Click on N42 Magnet Tolerances for a table that lists the range of variation in thickness, diameter, etc.

Click on American vs Metric to see a table with conversions & as well as rounded mm equivalents closest to inch sizes.

Documentation

Magnet Documentation
Drawing Compliance MSDS ROHS Graph REACH
Magnet Technical Diagram Certificate of Compliance MSDS ROHS N42 Graph REACH Document
