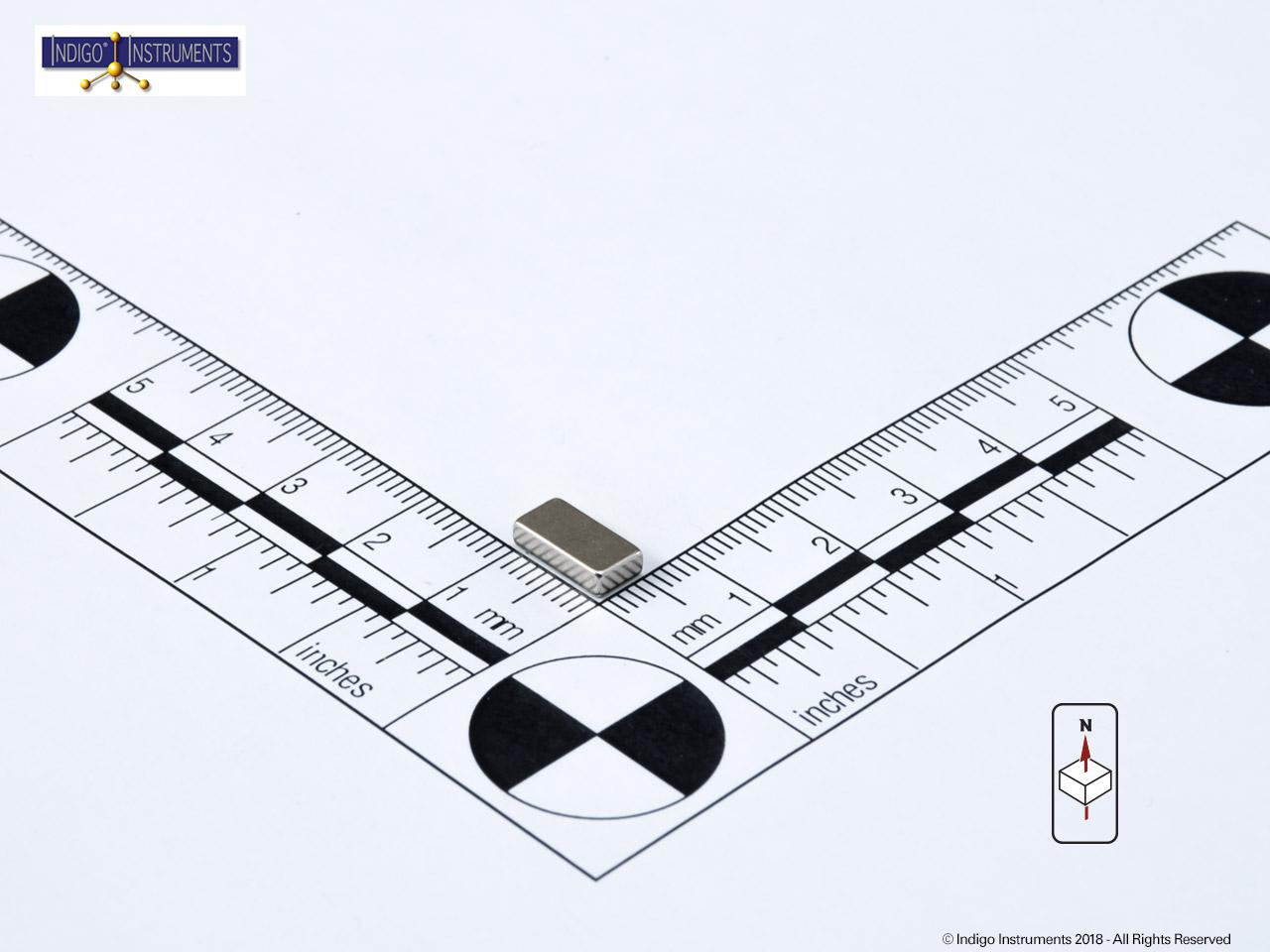

The 10x5x2.5mm rare earth block bar magnet has a holding force of ~2.5 pounds & a surface gauss of over 3700; from $0.76.
This magnet is available by special order only.
We have sold NdFeB magnets since 1996 and N42 grade since 2003, the best value for strength & temperature vs cost. Don't be fooled by claims of higher strength, N52, at lower cost.
Read the complete Google Customer Review for: "...(Indigo) N42 Neodymium magnets...the real deal…bought magnets on Amazon advertised as N52… another cheap Chinese fake"
We also provide complete Documentation including MSDS & ROHS; see below.
The Mark I Magnaprobe can respond to as little as 0.3 gauss & will detect weaknesses in magnetic shielding. The Mark II Magnaprobe is a fast & convenient way to confirm magnet are positioned with their poles pointing correctly.
Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet
SKU: 44227-2.5 Size: 10 x 5 x 2.5mm
Distance (mm):
0
0.1
1
10
100
Gauss
3723.0
3629.4
2723.0
150.3
0.3
Lb
2.39
2.27
1.28
0.00
0.00
Kg
1.09
1.03
0.58
0.00
0.00
Click on N42 Magnet Specifications for a table that lists general characteristics such as coercivity & remanence.
Click on N42 Magnet Tolerances for a table that lists the range of variation in thickness, diameter, etc.
Click on American vs Metric to see a table with conversions & as well as rounded mm equivalents closest to inch sizes.
Documentation
Magnet Documentation
Drawing
Compliance
MSDS
ROHS
Graph
REACH
Reviews (1)
2017-04-26
Just what I was looking for! When I originally ordered part of the order was on back order. I contacted the company and they were very helpful suggesting a similar size that was in stock. They were quick to answer e-mails and very helpful.
The order arrived very quick after that. I will be ordering from them again. Great prices and wonderful to deal with. Be sure to get your magnets from these guys , they're the best.
