17 Base Pair DNA-Partially Assembled

SKU: 62122-17U

$895.00USD Each

Qty:

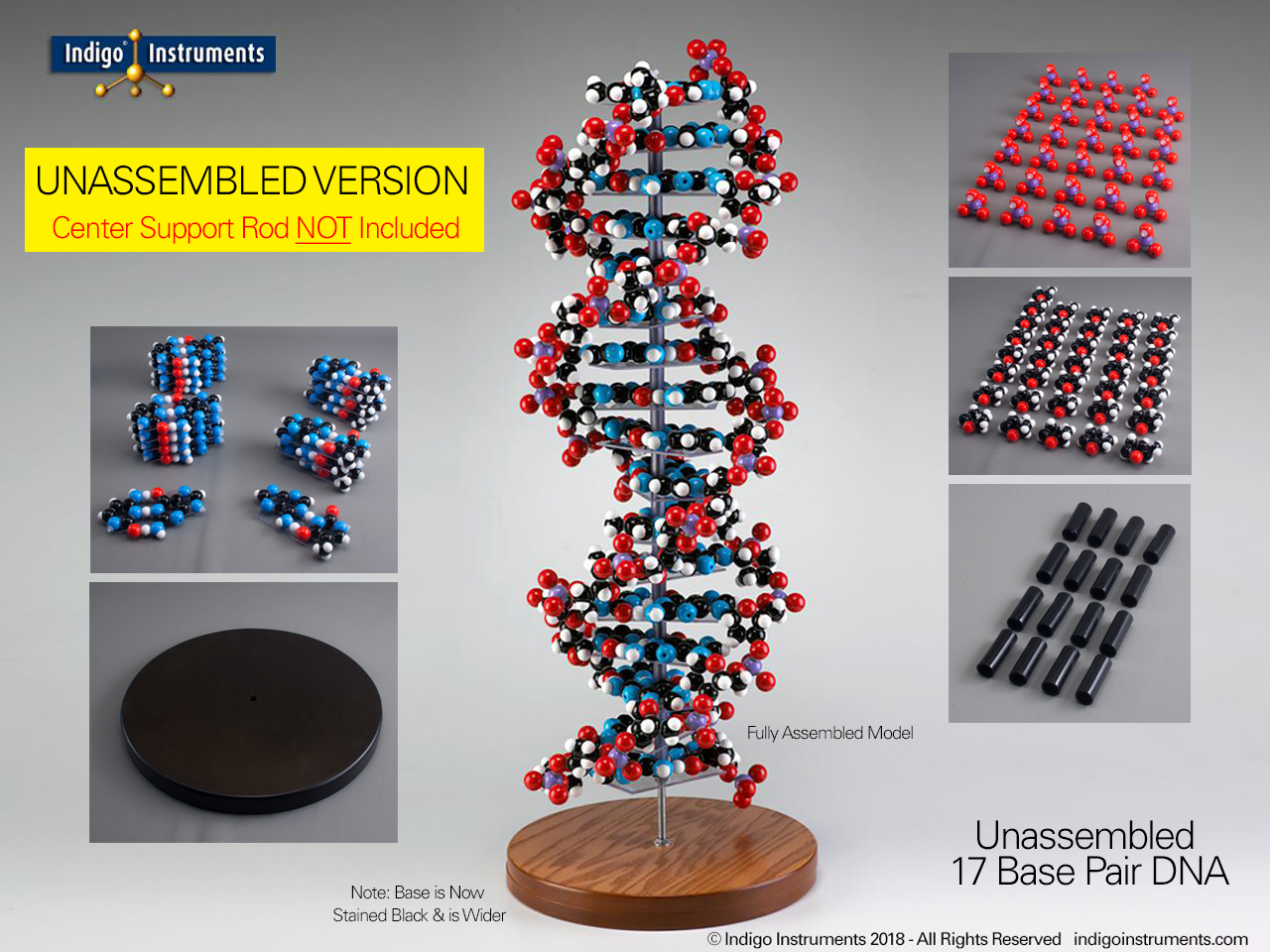

This Indigo® 17 base pair DNA Model is shipped partially assembled. Each base pair is mounted on a support layer & shipped with its support base & layer separators ready for final assembly. You need only buy the following which should be available in most hardware stores:

North America
1 x 3 foot long, 1/2" diameter threaded rod; 4 nuts; 4 washers

Outside North America
1 x 1 metre long, 12mm (or 12.5mm) diameter threaded rod; 4 nuts; 4 washers.

Once delivery has been confirmed, we will arrange a mutually convenient time for a Skype or Zoom video chat session with you for final assembly. No experience with molecular modelling is required. Assembly is straightforward & should not take more than 30-45 minutes.

The base pairs are shipped pre-assembled because some of the atom-atom connections are strained & must be glued first. In addition, the assembled model is very bulky & incurs very expensive air freight charges for customers outside of North America. The price of this version is slightly less to reflect the cost of the hardware you need to buy but is greatly offset by the much cheaper air freight.

Your final assembled model will be identical to the fully assembled 17 base pair DNA model.

Details Parts Specs Reviews
Details

Here's a recent review. "Our museum purchased a DNA molecule direct from Indigo Instrument and it's outstanding. We avoided Amazon...We plan to use them again." Read the full review by Curtis M, the latest of more than 400 happy owners of this model..



Parts
P/NDescriptionQTY
60010EHydrogen cap, ("mushroom"), ~15mm340
60121EAtom, Molymod, red (oxygen), 1 hole, 23mm77
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees102
60203EAtom, Molymod, blue (nitrogen), 2 hole, 105 degree, 23mm17
60210EAtom, Molymod, white (hydrogen), 2 hole, 180 degree, 17mm43
60303e17
60310EAtom, Molymod, black (carbon), 3 hole, 120 degrees, 23mm119
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm94
60312EAtom, Molymod, red (oxygen), 3 hole, 120 degrees, 23mm26
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm187
60407EAtom, Molymod, purple (phosphorus), 4 hole, 109.5 deg., 23mm34
60511EAtom, Molymod, black (carbon), 5 hole, 120/90deg., 23mm34
60516Cape26
61015EBond, Molymod, opaque, 2mm (for spacefilling models)748
61020EBond, Molymod, grey "V" (non-VSEPR), 3mm136
62122-17spacerBlack Layer Spacer for Indigo 17 & 36 Base Pair DNA16
62122-36BaseDNA Base 16x1.25"1
62122LAY17
Specifications

This fast paced video shows how easy final assembly is of the 36 base pair DNA model.
Video courtesy of Emma Pype and Stijn De Graeve, Erasmus University College Brussels.


  • Ideal display: museum, lobby, classroom
  • 1.5 turns; 17 base pairs, ~50:50 AT:GC
  • "B" form of double helix
  • Major/minor groove 1.9:1 ratio; actual is 1.83:1
  • Highly visual AT-GC base pairing
  • Assembled on black composite base (not as shown)
  • ~1m tall, 300mm diameter
  • Real weight is ~14 kg (31 lbs); dimensional is ~20 kg (45 lbs)
  • 3 foot/1 metre threaded steel rod is NOT included
  • 4 nuts & 4 washers that secure the rod to the base & top are NOT included
  • Zoom or Skype Video Chat final assembly tutorial, INCLUDED
